LINK MXS Strada 5" Dash - Street Edition

Link MXS Strada 5” Dash – Street Edition (Powered by AIM)

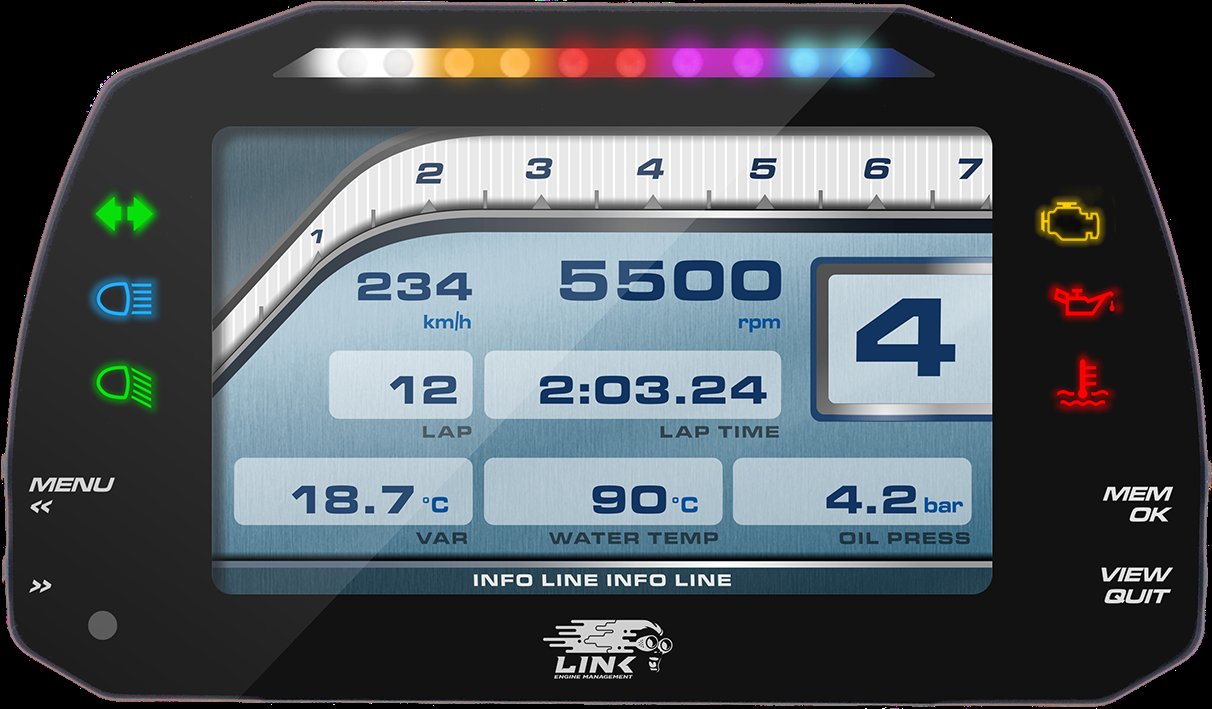

The Link MXS Strada Street Edition is a full-color 5-inch display approved for road use. It features 10 RGB shift lights and road icons on the side of the dashboard. It is preconfigured to work with all Link G4+/G4X wire-in and plug-in ECUs.

This display is the "Street Edition ." A "Race Edition" is also available for motorsports purposes. Other size options include the 7-inch (MXG) and 10-inch (MXT) display.

Main features:

• Customizable Shift Lights : 10 multi-color RGB shift lights that can be programmed to define the rev limit for each individual gear.

• Road icons : 6 road icons (turn signals, headlights, high beam, check engine, oil pressure warning and temperature warning).

• 5-inch TFT screen : High-contrast screen whose brightness adjusts automatically via an ambient light sensor.

• Real-time Data : Displays all information read in real time from the ECU, such as RPM, speed, water temperature, oil pressure and more.

• Easy to use : The buttons on the side allow you to navigate through preset display formats and adjust which information should be displayed in which layout.

Connection and configuration:

• Connects directly to your Link ECU using the included cable.

• Plug-in ECUs require CANPCB and CANF connectors (sold separately).

• Can be personalized using the Link ECU PC Link and Aim Technologies Race Studio 3 software.

Scope of delivery:

• Link MXS 1.2 Strada

• USB cable

• 14-pin standard cable

• 23-pin connector + contacts

Technical data:

• Dimensions : 169.4 x 97 x 23 mm

• Weight : 480 g

• Power consumption : 400 mA

• Waterproof : IP65

A GPS module is available separately.
