Link CAN Keypad 12 buttons

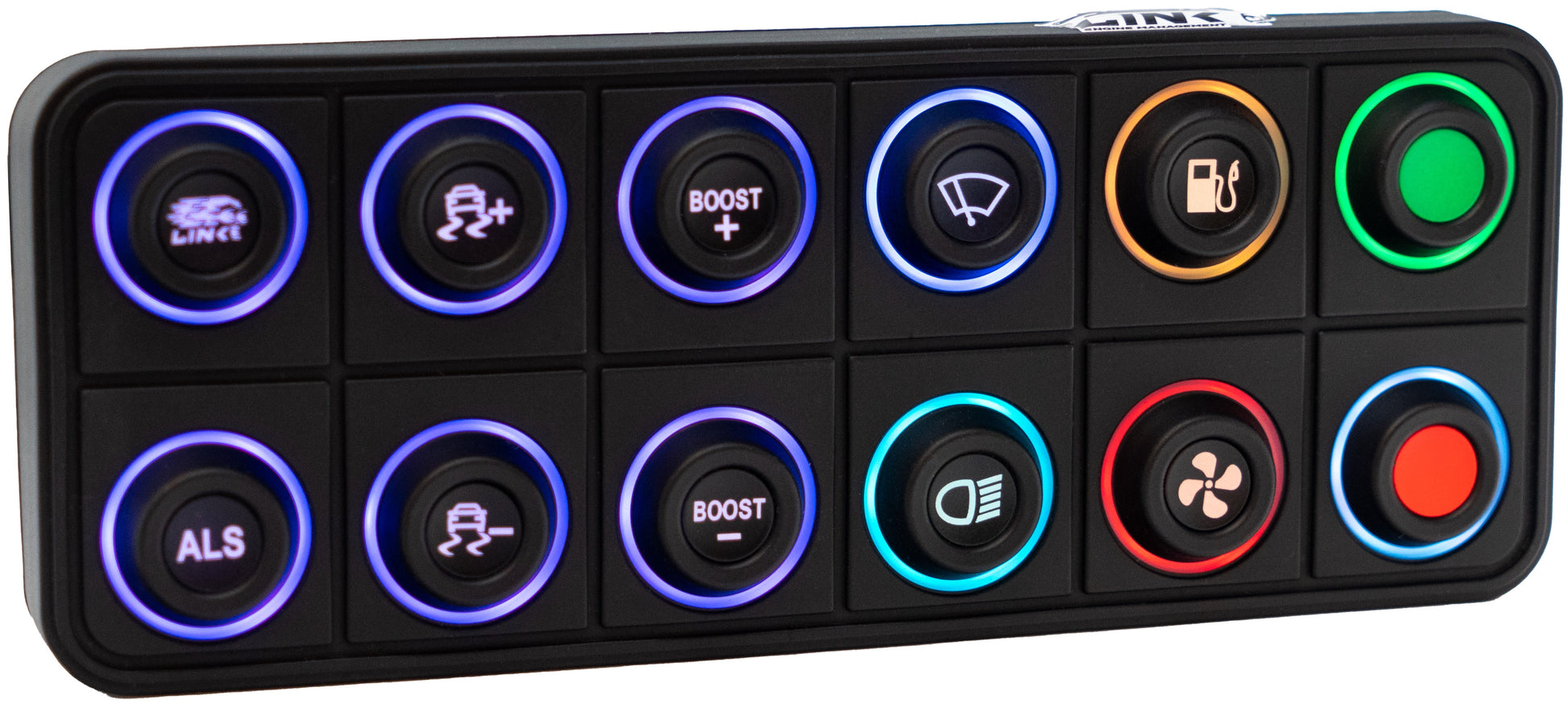

Rugged 12 Key CAN Keypad with Interchangeable 15mm Inserts

This 12-button CAN keypad offers extreme flexibility and reliability with configurable RGB indicator rings and customizable key inserts. It is dust and waterproof to IP67/IP69K and is designed for street, track, and off-road use.

Main features:

• CAN configurable with G4X PC Link : Change the LED backlight, the color of each button indicator ring and program status changes, flashing options and different modes (momentary, locked, toggle).

• Customizable key inserts : The key insert system allows for easy and cost-effective customization of the keyboard layout.

• Waterproof : IP67/IP69K, dustproof and waterproof up to a depth of 1 meter for 1 hour, as well as protected against high-pressure water at high temperatures.

• Compatible with all G4X ECUs from PC Link version 6.22.

Scope of delivery:

• 1 x 12-key CAN keypad

• 1 x DTM4 connector kit

• 1 x link sticker

• 1 x Keypad Button Insert - Link Logo

Technical data:

• Connection : DTM4 connector for CAN and power (black = ground, red = power, white = CAN high, blue = CAN low)

• Switch lifespan : 3 million operations

• CANopen Node ID : 0x15 (21)

• Standard baud rate : 1000 kbit/s

• Protection class : IP67/IP69K

• Chemical resistance : Deet, engine cleaner, isopropyl alcohol, sunscreen, multi-purpose cleaner, orange cleaner, hydrochloric acid

• UV protection : 400 hours UVB

• Salt spray resistance : ASTMB117

• Dimensions : 181.5 mm (W) x 70 mm (H)

Mounting specifications:

• Mounting bolt spacing : 136.14 mm (center to center)

• Nut thread : #10-32

• Maximum torque : 0.8 Nm
