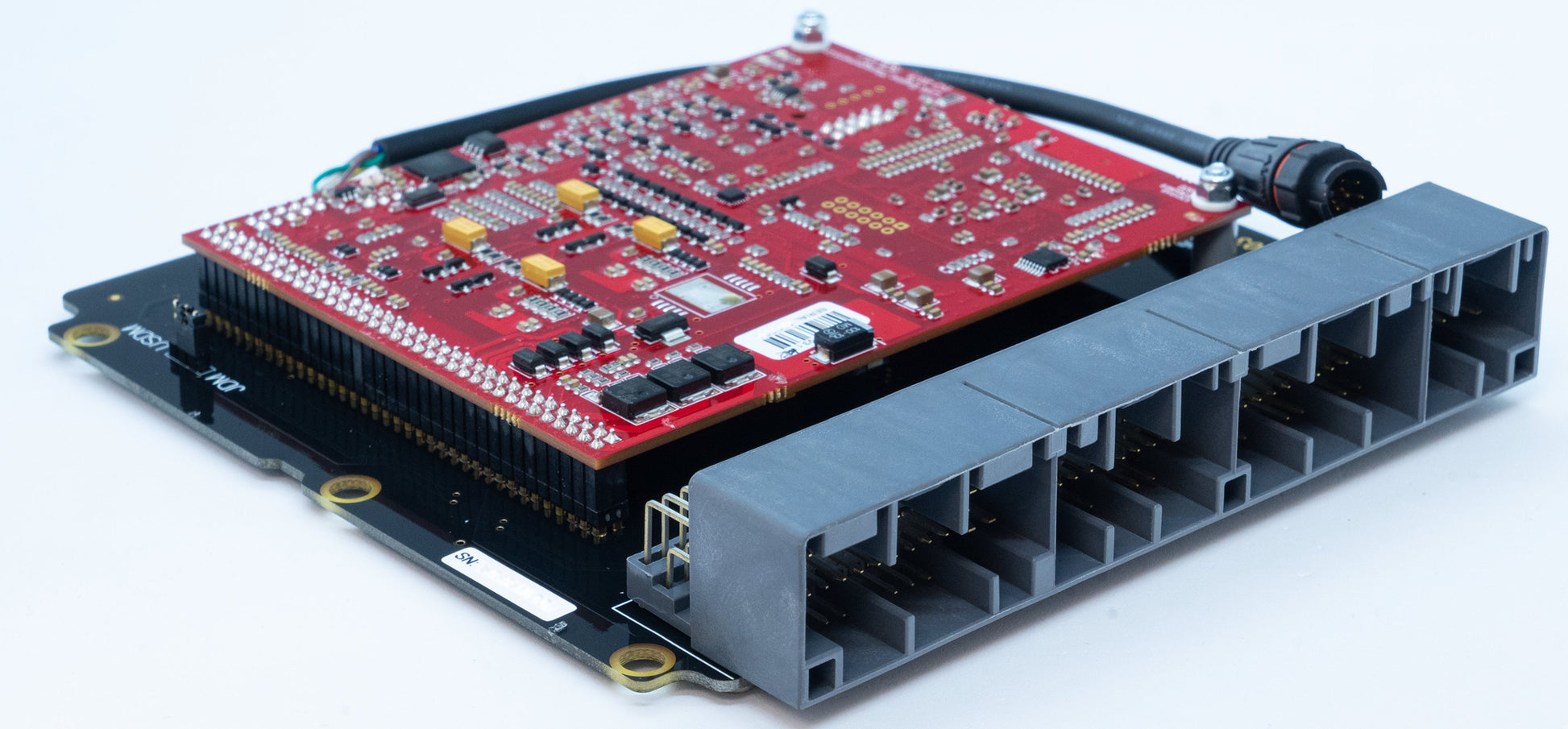

Honda S2000Link - S2000X Freely Programmable Control Unit

Easy to install. Affordable. Reliable.

The G4X PlugIn ECUs offer the latest engine control technology and are designed to effortlessly unlock the full potential of your vehicle.

This ECU fits into the standard OEM housing. Installation is a breeze, as no modifications to the original wiring harness are required for the models listed below.

This ECU is designed for the Honda S2000 AP1 .

Please check that your connector matches the header shown in the picture before purchasing.

This ECU only works with manual transmissions.

This ECU does not support models with factory electronic throttle (E-Throttle).

Most factory features are supported.

Check the Features tab for I/O expansion options.

A notice:

This plug-in features a new 4-pin powered CAN connector and cannot use the old CANPCB cable for CAN connection. Use the CANJST4 cable (code 101-0198) to connect CAN devices. This new 4-pin connector and cable not only provide the CAN connection but also a protected 12V power supply and ground for powering the CAN devices. The power supply is protected by a self-resetting fuse rated for 3A continuous current.

Suitable applications:

• Honda S2000 AP1 (1999-2004)

• Honda S2000 AP2 (2005, only models without E-Throttle)

G4X PlugIn Main Features (if applicable):

• Up to 6D fuel and ignition maps

• Precise camshaft control in a closed loop (four camshafts, independent control)

• Sequential fuel supply

• Digital triggering, all OEM samples

• Support for OEM idle hardware

• 5D boost pressure control with three switchable tables

• Motorsport functions: anti-lag, launch control, flat shift

• Continuous barometric correction (on-board)

• CAN interface

• QuickTune – Automated fuel tuning

• Cylinder-specific correction

• USB tuning cable included

• Recording statistics in internal memory

• Gear compensation for ignition, boost pressure and fuel

• Real-time switchable dual fuel, ignition and boost pressure maps

• Synchronization and crankshaft sensors can be a combination of Hall sensor, variable reluctance or optical sensor

• Boost pressure control based on gear, speed or throttle position

• 512 megabytes of data recording memory

• Step-by-step injection

• Knock detection with “windowing”

I/O expansion options:

E-Throttle connection:

• E-Throttle 1: Ground (signal)

• E-Throttle 2: +5V output

• E-Throttle 3: On Volt 10

• E-Throttle 4: On Volt 9

• E-Throttle 5: On Volt 8

• E-Throttle 6: On Volt 7

• E-Throttle 7: Aux 10

• E-Throttle 8: Aux 9

Extension connector 1:

• Expansion 1: Mass (Signal)

• Expansion 2: Aux 11

• Expansion 3: Aux 6

• Expansion 4: DI 11

• Expansion 5: DI 10

• Expansion 6: DI 9

• Expansion 7: DI 2

• Expansion 8: DI 1

Extension connector 2:

• Expansion 9: Mass (Signal)

• Expansion 10: Aux 16

• Expansion 11-14: Not connected

• Expansion 15: At Volt 12

• Expansion 16: At Volt 6
