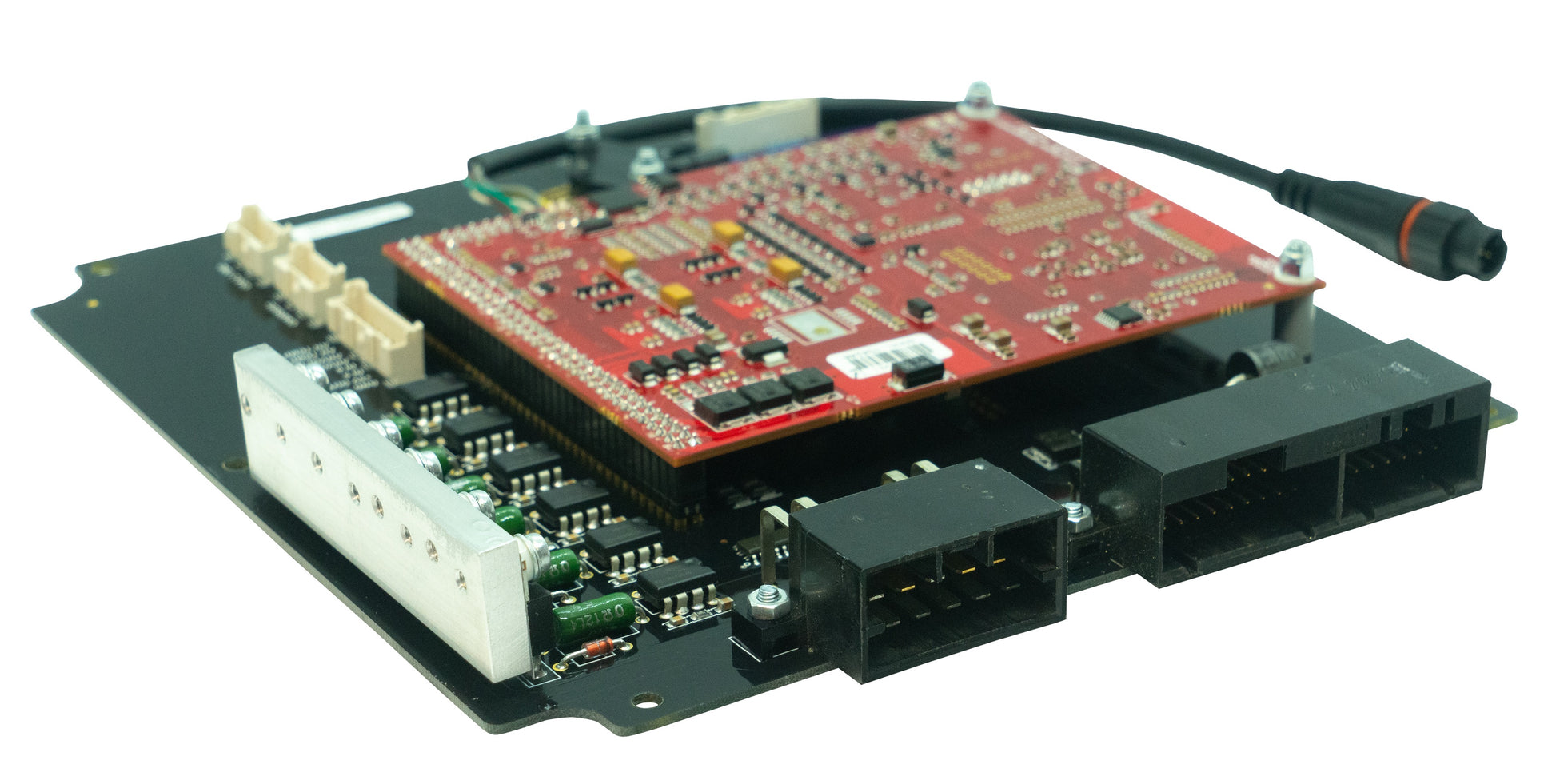

Honda CIVICLink - K20X Freely Programmable Control Unit

Easy to install. Affordable. Reliable.

The G4X PlugIn ECUs offer the latest engine control technology and are designed to effortlessly unlock the full potential of your vehicle.

This ECU fits into the standard OEM housing. Installation is a breeze, as no modifications to the original wiring harness are required for the models listed below.

This ECU is designed for the K20A engine .

• Please check that your connector matches the header shown in the picture before purchasing.

• This ECU only works with manual transmissions.

• Integrated 7 bar MAP sensor included.

• Most factory features are supported.

• Check the Features tab for I/O expansion options.

A notice:

This plug-in features a new 4-pin powered CAN connector and cannot use the old CANPCB cable for CAN connection. Use the CANJST4 cable (code 101-0198) to connect CAN devices. This new 4-pin connector and cable not only provide the CAN connection but also a protected 12V power supply and ground for powering the CAN devices. The power supply is protected by a self-resetting fuse rated for 3A continuous current.

Suitable applications (manual transmission only):

• Honda Integra Type R DC5 (2002-2004) with K20A/K20A2/K20A3 engine

• Acura RSX (2002-2004) with K20A/K20A2/K20A3 engine

• Honda Civic Type R EP3 (2001-2005) with K20A engine

• Honda Civic Si/SiR (2001-2005) with K20A3 engine

• Honda Civic DX/LX/HX (2001-2005) with D17A1/A2/A3 engine

• Honda CR-V (2002-2004) with K24A1 engine

G4X PlugIn Main Features (if applicable):

• Up to 6D fuel and ignition maps

• Precise camshaft control in a closed loop (four camshafts, independent control)

• Sequential fuel supply

• Digital triggering, all OEM samples

• Support for OEM idle control

• 5D boost pressure control with three switchable tables

• Motorsport functions: anti-lag, launch control, flat shift

• Continuous barometric correction (on-board)

• CAN interface

• QuickTune – Automated fuel tuning

• Cylinder-specific correction

• USB tuning cable included

• Recording statistics in internal memory

• Gear compensation for ignition, boost pressure and fuel

• Real-time switchable dual fuel, ignition and boost pressure maps

• Synchronization and crankshaft sensors can be a combination of Hall sensor, variable reluctance or optical sensor

• Boost pressure control based on gear, speed or throttle position

• 512 megabytes of data recording memory

• Step-by-step injection

• Knock detection with “windowing”
