Nissan Skyline GTTLink - NGTTX Freely Programmable Control Unit

Easy to install. Affordable. Reliable.

The G4X PlugIn ECUs offer the latest engine control technology and are designed to effortlessly unlock your vehicle's potential.

This ECU fits into the factory OEM housing. Installation is simple; no modifications to the original wiring harness are required for the models listed below.

The NGTTX is designed for the RB motor with a gray connector (typically NEO).

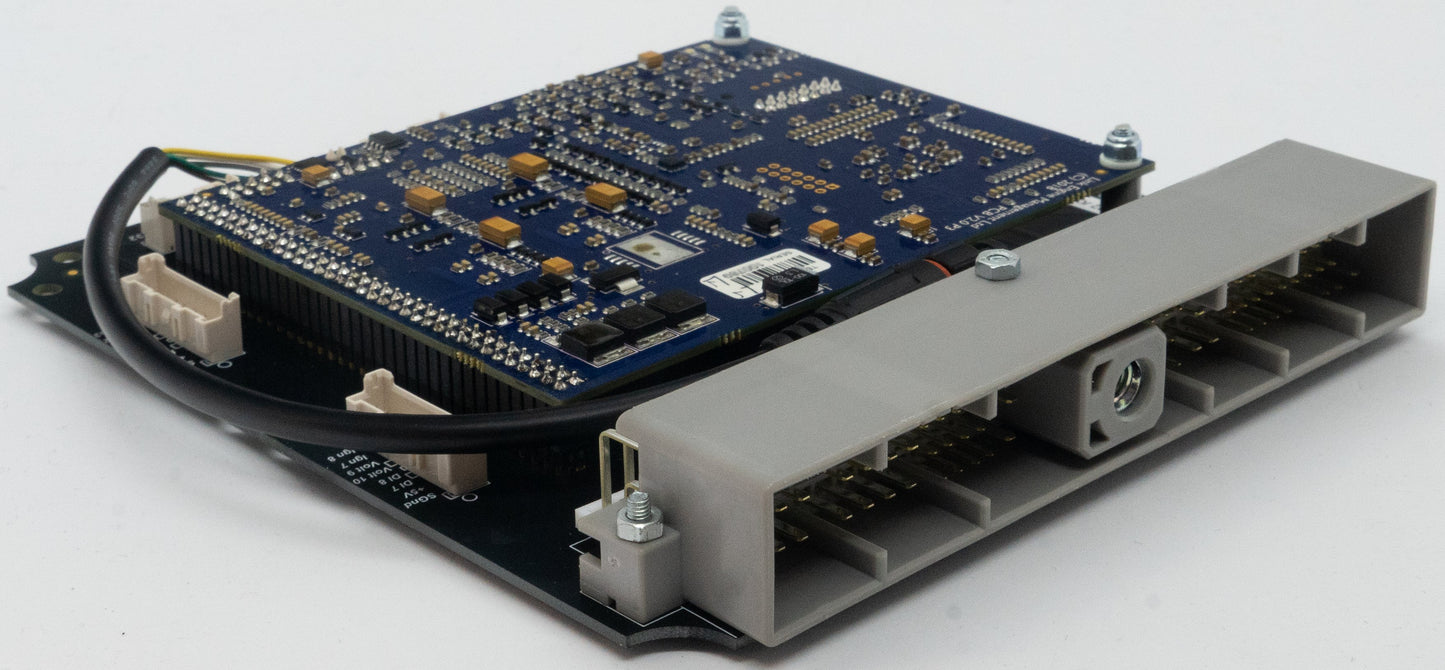

Please check that your connector matches the header shown in the picture before purchasing.

This ECU only works with manual transmissions.

Most factory features are supported.

Note: This ECU does not currently output a 4WD signal, which is required for proper operation of the four-wheel drive system in 4WD Stageas and Skylines.

Note: On models with factory-equipped Traction Control (TCS), the traction control will no longer function and the TCS and skid lights will illuminate.

Check the Features tab for I/O expansion options.

This ECU must be modified before the electronic throttle can be used.

Suitable applications:

• RB20DE NEO, RB25DE NEO and RB25DET NEO in R34 Skylines

• RB20DE NEO, RB25DE NEO and RB25DET NEO in C35 Laurels

• RB20DE NEO, RB25DE NEO and RB25DET NEO in Nissan Stageas

• Plus, non-NEO engines in Stageas

G4X PlugIn Main Features (if applicable):

• Up to 6D fuel and ignition maps

• Precise camshaft control in a closed loop (four camshafts, independent control)

• Sequential fuel supply

• Digital triggering, all OEM samples

• Support for OEM idle control

• 5D boost pressure control with three switchable tables

• Motorsport functions – anti-lag, launch control, flat shift

• Continuous barometric correction (on-board)

• CAN interface

• QuickTune – automated fuel tuning

• Cylinder-specific correction

• USB tuning cable included

• Recording statistics in internal memory

• Gear compensation for ignition, boost pressure and fuel

• Real-time switchable dual fuel, ignition and boost pressure maps

• Synchronization and crankshaft sensors can be a combination of Hall sensor, variable reluctance or optical sensor

• Boost pressure control based on gear, speed or throttle position

• 512 megabytes of data recording memory

• Step-by-step injection

• Knock detection with “windowing”

I/O expansion options:

The following input/output ports are provided:

Expansion connector 1

• SGnd: Sensor ground only

• +5V Out: Low current +5V output

• DI 7: Digital input

• DI 8: Digital input

• On Volt 10: Analog input 0-5V

• On Volt 9: Analog input 0-5V

• Ign 7: Ignition output 7, auxiliary output

• Ign 8: Ignition output 8, auxiliary output

Extension connector 2

• SGnd: Sensor ground only

• +5V Out: Low current +5V output

• DI 5: Digital input

• DI 6: Digital input

• On Volt 5: Analog input 0-5V

• On Volt 6: Analog input 0-5V

• On Temp 2: Temperature input

• On Temp 3: Temperature input

Pin 108 – OBD1 line is now used for IAT at Temp 4
