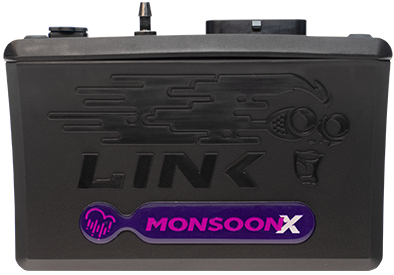

G4X MonsoonX ECU

MonsoonX

More features, more power.

The MonsoonX has been upgraded to offer 512 megabytes of data logging, allowing you to record significantly more data at a higher sample rate. The control circuits are more precise than its G4+ predecessor, and there are improvements such as single-precision floating-point fuel tables, better resolution for ignition timing control, and faster communication. These upgrades make the G4X Monsoon a true powerhouse in a compact package.

The G4X has 512 megabytes of 32-bit logging with up to 250 channels, each channel limited to 1 kHz (by the operating system), with a maximum rate of 100 kSamples/s.

With the MonsoonX, you get all the tuning features of the AtomX, but you can also take advantage of some of the following features: Launch Control, Anti-Lag, VVT Control, and Closed Loop Boost Control. It also comes with an integrated 4- or 7-bar MAP sensor, further reducing installation costs. Now also with knock detection.

Note: The MonsoonX can perform all of the above functions, but not all at once. The number of functions you can use depends on how many of the limited inputs and outputs each function requires.

The MonsoonX can control up to 2 rotors or 4 cylinders with sequential injection and direct ignition. Alternatively, it can be used for up to eight cylinders in batch mode. This makes it ideal for naturally aspirated or turbocharged engines that only need a retune and one or two additional features, eliminating the need to upgrade to one of our higher-end ECUs.
