3 bar MAP sensor

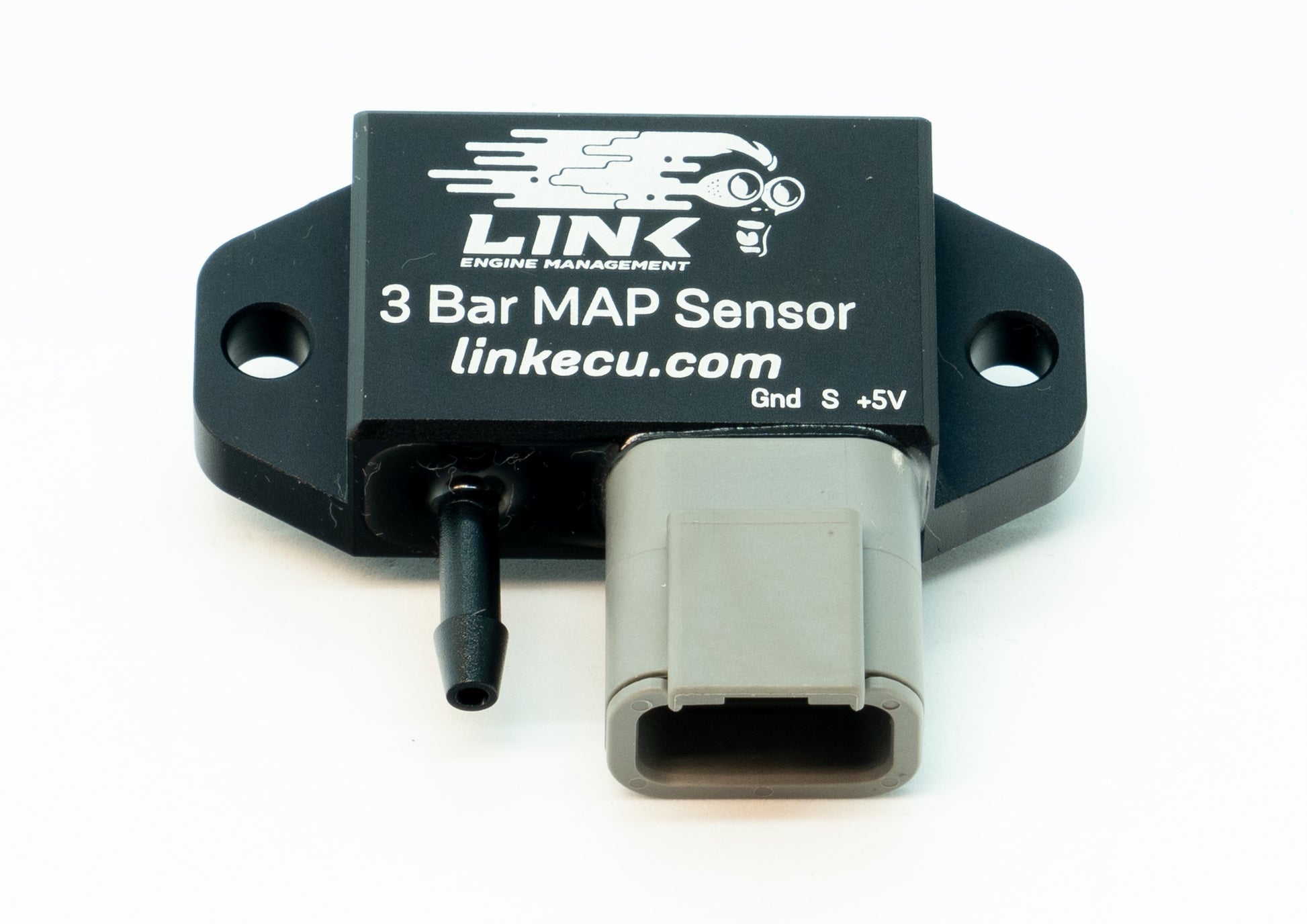

Link 3 Bar MAP Sensor

The Link 3 Bar MAP sensor measures up to 3 bar absolute pressure and is suitable for turbo or supercharger applications with a boost pressure of up to 2.0 bar (29 psi) .

Features:

• Compatible with Link G4/G4+/G4X ECUs – Select the MAP sensor type in the PC Link software as 'Link 3 Bar' .

• Includes Deutsch 3-pin connector kit .

• Easy installation with two mounting holes. The sensor should be mounted higher than the intake manifold connection to which the hose is connected.

• Compact aluminum housing .

• Mechanical connection via a 4mm hose connection nipple .

This sensor provides a robust and precise solution for boost pressure monitoring in turbocharged engine applications.
